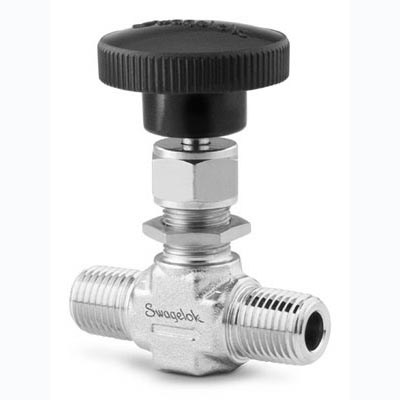

Swagelok Integral Bonnet Needle Valve, 0.37 Cv, 1/4 in. MNPT, Vee Stem
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 1/4 in. |
| Connection 1 Type | Male NPT |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 2 Size | 1/4 in. |
| Connection 2 Type | Male NPT |
| Max Temperature with Pressure Rating | 450°F @ 3435 PSIG /232°C @ 236 BAR |
| UNSPSC (SWG01) | 40141602 |
| Flow Pattern | Straight (2-way) |
| Handle Color | Black |
| Handle Style | Phenolic Knob |
| Lubricant | Perf. Polyether/Tung. Disulfide (WL7) |
| Orifice | 0.172 in |
| Packing | PFA |
| Room Temperature Pressure Rating | 5000 PSIG @ 100°F /344 BAR @ 37°C |
| Stem Tip Material | 316 Stainless Steel |
| Stem Type | Vee |
| eClass (4.1) | 37010201 |
| eClass (5.1.4) | 37010201 |
| eClass (6.0) | 37-01-02-03 |
| eClass (6.1) | 37-01-02-03 |
| UNSPSC (10.0) | 40141602 |
| UNSPSC (11.0501) | 40141602 |
| UNSPSC (13.0601) | 40141602 |
| UNSPSC (15.1) | 40141602 |
| UNSPSC (4.03) | 40141602 |
| Valve Material | Stainless Steel |
