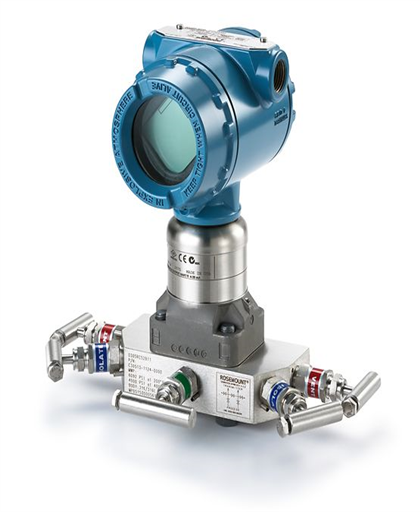

Rosemount 3051S2CD3A2E12A1AM5 Pressure Transmitters

Rosemount 3051S2CD3A2E12A1AM5 Pressure Transmitters

Your Model Number: 3051S PERCLAS-29082#CONTYPE-1620C#MEATYP-1621D#PRABSOL-16253A#ISODIAPH-15122#PRMATER-1646E12#TRO-116A#HOS-32161ADISTYP-1003M5 2#C#D#3A#2#E12#A#1AM5 2,C,D,3A,2,E12,A,1A, M5, 3051S 2 C D 3A 2 E12 A 1A M5

SKU: 52e887ef33d1 Category: Tag:

Description

Output

  • Two-wire 4-20 mA is user-selectable for linear or square root output. Digital signal based on HART

Range

  • 051S_CA: 0-0.167 to 0-4000 psia
  • 3051S_CD: 0-0.01 in H2O to 0-2000 psid
  • 3051S_CG: 0-8.3 in H2O to 2000 psig

Accuracy
3051S_CD/CG, Ranges 2-4:

  • Classic: +0.035% of span, For spans less than 10:1: ±[0.015 + 0.005(URL / Span)]% of span
  • Ultra: +0.025% of span, For spans less than 10:1: ±[0.005 + 0.0035(URL / Span)]% of span
  • Ultra for Flow(3051S_CD Only, Ranges 2-3): +0.04% of reading up to 8:1 DP turndown from URL, or ±[0.04 + 0.0023(URL / Reading)]% of reading to 200:1 DP turndown from URL

3051S_CD/CG, Range 5:

  • Classic: +0.065% of span, For spans less than 10:1, ±[0.015 + 0.005(URL / Span)]% of span
  • Ultra: +0.05% of span, For spans less than 10:1, ±[0.005 + 0.0045(URL / Span)]% of span

3051S_CD/CG, Range 1:

  • Classic: +0.10% of span, For spans less than 15:1, ±[0.025 + 0.005(URL / Span)]% of span
  • Ultra: +0.09% of span, For spans less than 15:1, ±[0.015 + 0.005(URL / Span)]% of span

3051S_CD, Range 0:

  • Classic: +0.10% of span, For spans less than 2:1: ±0.05% of URL
  • Ultra: +0.09% of span, For spans less than 2:1: ±0.045% of URL

3051S_CA, Ranges 1-4:

  • Classic: +0.035% of span, For spans less than 10:1: ±[0.0065(URL / Span)]% of span
  • Ultra: +0.025% of span, For spans less than 10:1: ±[0.004(URL / Span)]% of span

3051S_CA, Range 0:

  • Classic: +0.075% of span, For spans less than 5:1: ±[0.025 + 0.01(URL / Span)]% of span
  • Ultra: +0.075% of span, For spans less than 5:1: ±[0.025 + 0.01(URL / Span)]% of span

Power

  • 3051S: 10.5-42.4 V dc with no load
  • 3051S with Advanced HART Diagnostic Suite: 12-42.4 V dc with no load

Process Wetted Material

  • 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST

Materials

  • Sensor Wetted Parts: 316L SST, Hastelloy, Monel, Tantalum, Gold-plated SS, Gold-plated Monel
  • Sensor Fill Fluid: Silicone, Inert (Halocarbon)
  • Coplanar and Traditional Flanges and Adapters: Cadmium and Nickel-plated CS, 316 SST, Hastelloy, Monel

Process Flange

  • Carbon Steel, SST

Features

  • Ultra, ultra for flow, and classic performance
  • Gauge, differential or absolute measurements
  • Remote Display and Interface options
  • Zero and span adjustment
  • PlantWeb alerts
  • Burst pressure limit: 10,000 psig (689.5 bar)
  • Best-in-class, scalable architecture enhances performance, functionality and process connections
  • Transmitter arrives fully assembled and leak tested for simple installation and maintenance
