Description
Specification
Specifications: Standard Version: 4-1/2″
Nominal size
- MAX3: 2.5″
- MAX5: 4″
Measurement range:-
- Vacuum/Compound – 10,000 psi
Pressure limitation:-
- Steady: 75% of full scale value
- Fluctuating: 65% of full scale value
- Short time: 100% of full scale value
Accuracy:-
- 2.5″: +/- 1.6% of span
- 4″: +/- 1.0% of span
Protection rating:-
- IP 65
Process Connection:-
- MAX: Copper Alloy
Bourdon tube:-
- MAX: Copper Alloy – pressures < 6,000 psi
Stainless Steel – pressures > 6,000 psi
Case:-
- Stainless Steel
Movement:-
- Copper Alloy
Window:-
- Acrylic
Window gasket:-
- Elastomer
Dial:-
- Aluminium, white
Pointer:-
- Aluminum, black
Temperature :-
- Ambient : -4°F …+140°F (-20°C…+60°C) – Glycerin Filled
-40°F…+140°F (-40°C…+60°C) – Silicone Filled - Medium : max. +140°F
Thermal drift:-
- ± 0.4% F.S. / 10 K (reference : 20°C)

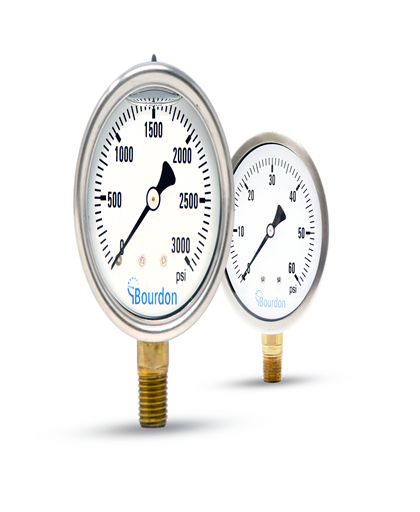

Description
Main Features
- Stainless Steel case and copper alloy socket
- Liquid-filled for applications with pulsations or vibrations
- Ranges up to 10,000 psi
Applications
- Adverse service conditions where pulsation or vibration exist
- Hydraulics
- Compressors
- Pneumatics
- Pumps
- Diesel Engines
- Suitable for gaseous or liquid media that will not obstruct the pressure system
Technical Data-Sheet
GAUGE-Bourdon-MAX3-MAX5.pdf
