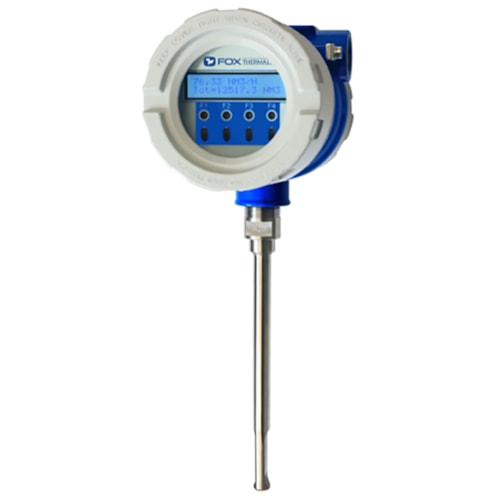

Description
Features
- Field selectable units SCFM, NM3H, Kg/Hr and more
- Turndown range typically 100:1
- Measures process gas and temperature
- 4 to 20 mA outputs for flow and temperature; pulse output for flow
- 316 stainless steel sensor; Hastelloy C276 optional
- USB connection standard (free FT3 View Software); Optional HART and RS485 Modbus
- Optional display, LCD 2 line, 16 character, backlit, Infrared (IR) buttons
- CAL-V in pipe calibration validation
- Zero CAL-CHECK calibration validation feature
- Power input 24 VDC or optional 85 to 264 VAC in local or remote enclosures
- FM and FMc approvals
- ATEX and IECEx approvals, Zone 1 and 2
- Class I, Div 1, Groups B,C,D
- Class I, Div 2, Groups A,B,C,D
- Class II & III, Div 1, Groups E,F,G
- Indoor/outdoor NEMA 4X and CE approved
