Description
Features

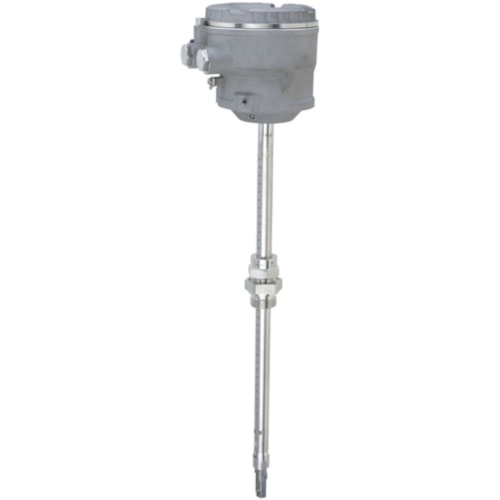

- Insertion version for DN 80 to 1500 (3 to 60″)
- Bidirectional measurement
- Patented drift-free sensor with SIL 2
- Remote version with up to 4 I/Os
- 44 to 1669340 lb/h (20 to 733501 kg/h) measuring range
- Gas: 1.0% o.r. (10 to 100% o.f.s.), 0.1% o.f.s. (1 to 10% o.f.s.) accuracy
- -7.25 to 290 psig (-0.5 to 20 barg) max process pressure
- Backlit display with touch control and WLAN access
- Standard cable between sensor and transmitter
- Aluminium, AlSi10Mg, coated Polycarbonate transmitter housing
