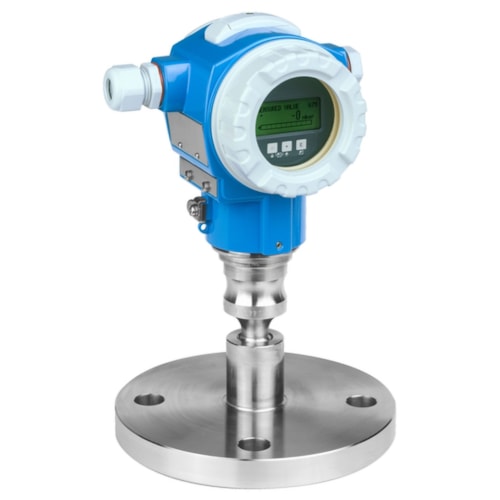

Description
Features
- Two chamber aluminum or stainless steel (316L) housing.
- Threads, flanges or hygienic process connections
- -94 to 752°F (-70 to 400°C) process temperature
- -1/0 up to 400bar (-15/0 up to +6,000psi) pressure
- 1050bar (15,200psi) process pressure absolute/max overpressure limit
- 400 mbar to 400 bar (6 psi to 6000 psi) pressure measuring range
- ±0.075% accuracy
- 7000m (22.966ft) H2O max measuring distance
- Supply / Communication
- 4 to 20mA HART:
- 10.5 to 45V DC
- Ex ia: 10.5 to 30V DC
- PROFIBUS PA /
- FOUNDATION Fieldbus:
- 9 to 32V DC
- ATEX, FM, CSA, CSA C/US, IEC Ex, JPN Ex, INMETRO, NEPSI, EAC
- Overfill prevention WHG, SIL
- EN 10204-3.1, NACE MR0175, MR0103
- 3A, EHEDG
- GL/ ABS
